CASE STUDY
Transfer of Toilet Wastewater
Client : Dry Pit Application

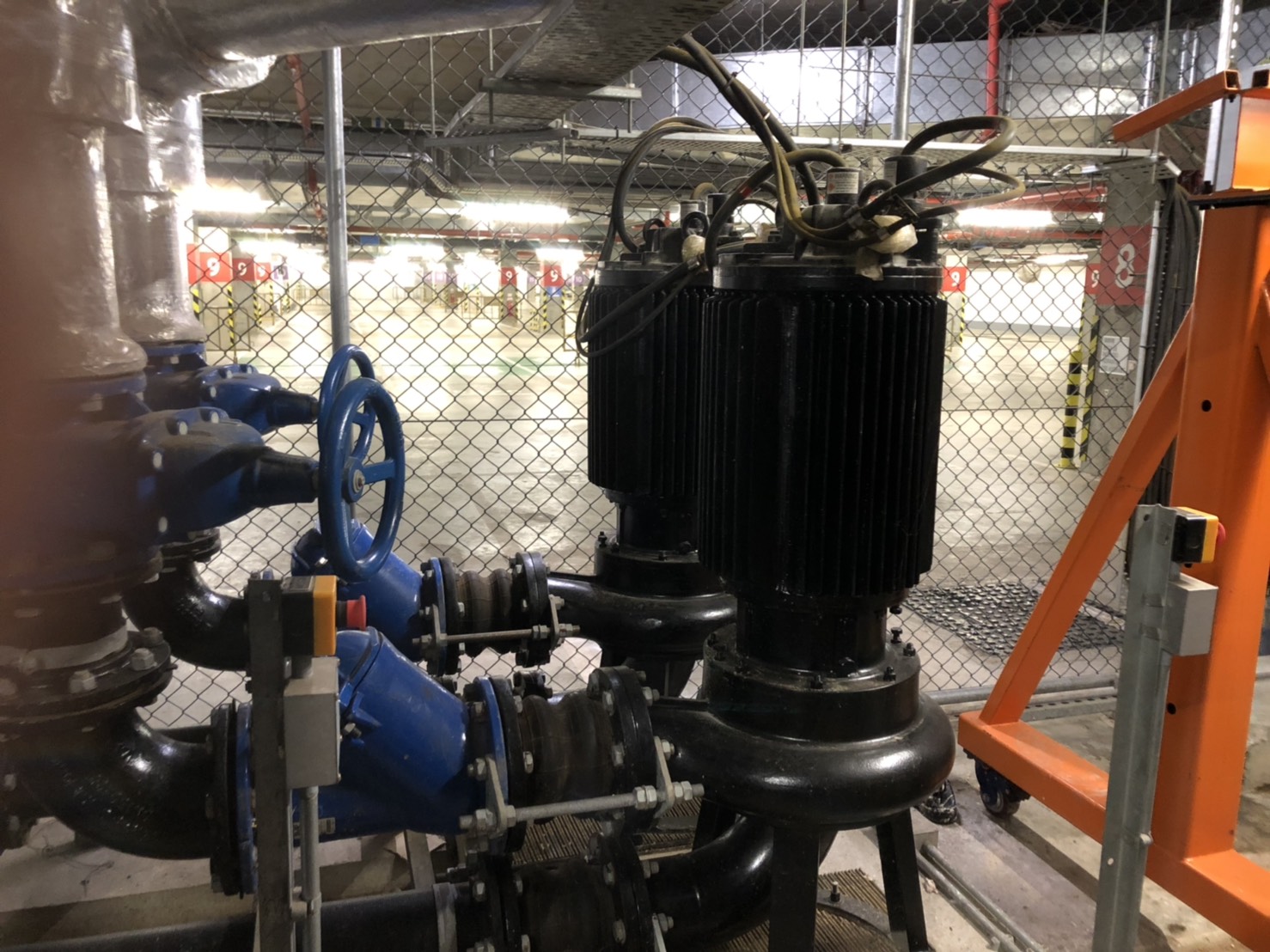

EIM supplied six dry pit submersible pumps of its SUAD series to a hotel in Macau, Hong Kong. The SUAD pumps were installed in a dry pit at a hotel parking space and used to transfer wastewater from a toilet pit to a water treatment system. The feature of SUAD series is its cooling fins surrounding a motor. These cooling fins increase the surface area of a motor to dissipate heat during operation. Since the motor is kept cool, the pump can run without damages to its motor even in dry-pit installation.
| Specifications | |
| Model | SUAD-1520EDT |
| Discharge dia. | 150mm |
| Head | 24m |
| Flow | 30L/s (1.8 m3/min) |
| Rated output | 15kW |
