GENERAL PURPOSE SUBMERSIBLE PUMPS -Horizontal Type
for Sand -

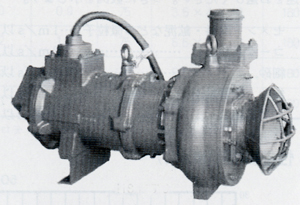

Model HS Heavy Duty Purpose for Slurry, Sludge and sand
A mighty pump owing to its non-clogging high-chrome cast iron impeller,
available for operation in very low water level
| ■Has horizontal shaft and impeller arrangement running
in lower water level allowing. |
| ■High-chrome cast iron impeller in which wide waterways
are arranged, brings about high performance for long-term and minimum
maintenance cost. |
| ■Motor protector built-in. |
Model |
Discharge |
No. of Poles |
Motor Output |
Rated Head |
Rated Flow |
Power Cable |
Weight |
|
|
mm |
inch |
kW |
HP |
m |
ft |
m3/min |
l/s |
mm2×Core×Length(m) |
kg |
HS-1515E |
100/150* |
4/6* |
4 |
11 |
15 |
12 |
39 |
3.0 |
50.0 |
14×4×10 |
375 |
HS-1530E |
150 |
6 |
4 |
22 |
30 |
18 |
59 |
4.0 |
66.7 |
22×4×10 |
490 |
|
・A motor protector (bimettalic auto cut) is installed for motors.
・Mark * shows availability of discharge sizes, on request.
・Power cable : 3CT
