GENERAL PURPOSE SUBMERSIBLE PUMPS -For General
Drainage-

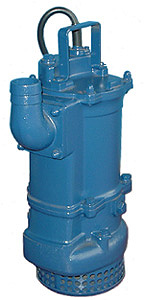

Model V Semi-Vortex Solid Handling Type for Construction and General
Drainage
Solves drainage problems dealing with draining at construction work site
| ■Super-lightweight, changeable discharge port and wide
water-way in pump casing due to semi-vortex type. |
| ■No down time due to impeller wearing and no impeller clogging or locking. |
Model |
|
Discharge |
No. of Poles |
Motor Output |
Rated Head |
Rated Flow |
Power Cable |
Weight |
|
|
|
mm |
inch |
kW |
HP |
m |
ft |
m3/min |
l/s |
mm2×Core×Length(m) |
kg |
VF-505 |
Hose Connection |
50 |
2 |
2 |
0.4 |
1/2 |
8 |
26 |
0.12 |
2.0 |
1.25×4×10 |
13 |
VF-505E |
Flange Connection |
VF-51 |
Hose Connection |
2 |
0.75 |
1 |
10 |
33 |
0.18 |
3.0 |
1.25×4×10 |
13 |
VF-51E |
Flange Connection |
V-52 |
Hose Connection |
2 |
1.5 |
2 |
15 |
49 |
0.2 |
3.3 |
1.25×4×10 |
27 |
V-52E |
Flange Connection |
V-82 |
Hose Connection |
80 |
3 |
2 |
1.5 |
2 |
10 |
33 |
0.35 |
5.8 |
1.25×4×10 |
27 |
V-82E |
Flange Connection |
V-105 |
Hose Connection |
100 |
4 |
2 |
3.7 |
5 |
10 |
33 |
0.9 |
15.0 |
2.0×4×10 |
47 |
V-105E |
Flange Connection |
|
・A motor protector (bimettalic auto cut) is installed for motors.
・Power cable : VCT(1.25mm2), 3CT(2mm2)
